This product manual contains important information about the
safe installation and
use of this projector. Please read and follow these instructions
carefully and keep this
manual in a safe place for future reference.
1.1 What are included:
- DMX-512 Controller
- DC 9-12V 500mA, 90V~240V Power Adapter
- Manual
- LED gooseneck lamp
1.2 Unpacking Instructions:
Immediately upon receiving a fixture, carefully unpack the
carton, check the contents to ensure that all parts are present, and have been
received in good condition. Notify the shipper immediately and retain packing
material for ins pection if any parts appear damaged from shipping or the
carton itself shows signs of mishandling. Save the carton and all packing
materials. In the event that a fixture must be returned to the factory, it is
important that the fixture be returned in the original factory box and packing.
1.3 Safety Instructions:
Please read these instructions carefully, which includes
important information about the installation, usage and maintenance .
* Please keep this User Guide for future consultation. If
you sell the unit to another user, be sure that they also receive this
instruction booklet.
* Always make sure that you are connecting to the proper
voltage and that the line voltage you are connecting to is not higher than that
stated on decal or rear panel of the fixture.
* This product is intended for indoor use only!
* To prevent risk of fire or shock, do not expose fixture to
rain or moisture. Make sure there are no flammable materials close to the unit
while operating.
* The unit must be installed in a location with adequate
ventilation, at least 50cm from adjacent surfaces. Be sure that no ventilation
slots are blocked.
* Always disconnect from power source before servicing or
replacing lamp or fuse and be sure to replace with same lamp source.
* In the event of serious operating problem, stop using the
unit immediately. Never try to repair the unit by yourself. Repairs carried out
by unskilled people can lead to damage or malfunction. Please contact the
nearest authorized technical assistance center. Always use the same type spare
parts.
* Don t connect the device to a dimmer pack.
* Make sure power cord is never crimped or damaged.
* Never disconnect power cord by pulling or tugging on the
cord.
* Do not operate this device under 113 F ambient temperature
conditions.
2. INTRODUCTION:
2.1 Features 2.1Features
* DMX512/1990 Standard
* Controls 24 intelligent lights of up to 16 channels,
totally 384 channels
* 30 banks, each with 8 scenes; 6 chase, each with up to 240
scenes
* Record up to 6 chases with fade time and speeds
* 16 sliders for direct control of channels
* MIDI control over banks, chases and blackout
* Built-in microphone for music mode
* Auto mode program controlled by fade time sliders
* DMXin/out:3pinXRL
* LED gooseneck lamp
* Plastic end housing
2.2 General Overview:
* The Controller is a universal intelligent lighting
controller. It allows the control of 24 fixtures composed of 16 channels each
and up to 240 programmable scenes. Six chase banks can contain up to 240 steps
composed of the saved scenes and in any order. Programs can be triggered by
music, midi,automatically or manually. Allchasescanbeexecutedatthesametime.
* On the surface you will find various programming tools
such as 16 universal channel sliders, quick access scanner and scene buttons,
and an LED display indicator for easier navigation of controls and menu
functions.

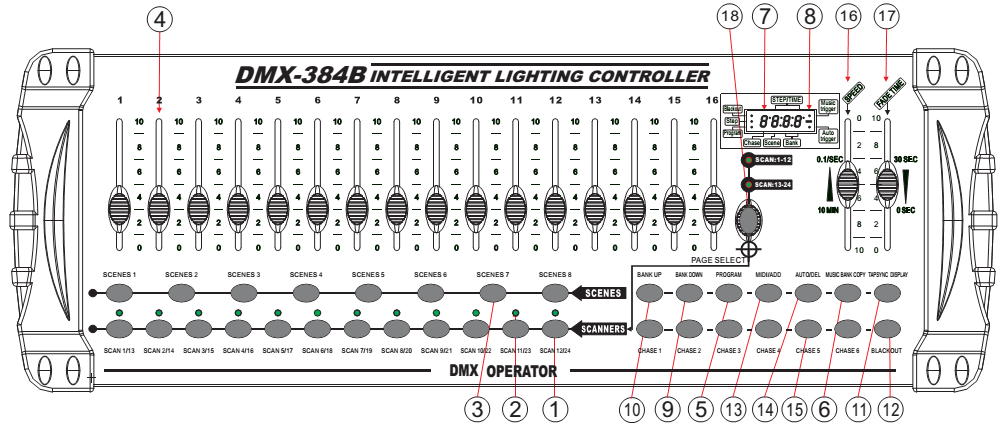

2.3 Product Overview (front)
 |
| iControl Electronics Co., Ltd www.icontrol.com.vn |
 |
| iControl Electronics Co., Ltd www.icontrol.com.vn |
2.4ProductOverview(rearpanel)
 |
| iControl Electronics Co., Ltd www.icontrol.com.vn |
 |
| iControl Electronics Co., Ltd www.icontrol.com.vn |
2.5 Common Terms:
The following are common terms used in intelligent light
programming.
Blackout is a state by where all lighting fixtures light
output are set to 0 or off, usually on a temporary basis.
DMX-512 is an industry standard digital communication
protocol used in entertainment lighting equipment. For more information read
Sections DMX Primer and DMX Control Mode in the Appendix.
Fixture refers to your lighting instrument or other device
such as a fogger or dimmer of which you can control.
Programs are a bunch of scenes stacked one after another. It
can be programmed as either a single scene or multiple scenes in sequence.
Scenes are static lighting states.
Sliders also known as faders.
Chases can also be called programs. A chase consists of a
bunch of scenes stacked one after another.
Scanner refers to a lighting instrument with a pan and tilt
mirror; however, in the ILS-CON controller it can be used to control any
DMX-512 compatible device as a generic fixture.
MIDI is a standard for representing musical information in a
digital format. A MIDI input would provide external triggering of scenes using
midi device such as a midi keyboard.
Stand Alone refers to a fixture s ability to function
independently of an external controller and usually in sync to music, due to a
built in microphone.
Fade slider is used to adjust the time between scenes within
a chase.
Speed slider affects the amount of time a scene will hold
its state. It is also considered a wait time.
Shutter is a mechanical device in the lighting fixture that
allows you to block the lights path. It is often used to lessen the intensity
of the light output and to strobe.
Patching refers to the process of assigning fixtures a DMX
channel or.
Playbacks can be either scenes or chases that are directly
called to execution by the user. A playback can also be considered program
memory that can be recalled during a show.
