Before you
begin, read all warnings and installation instructions.
Safety &
Warnings:
This product
is intended to be installed
and serviced by a qualied
licensed electrician. Install
in accordance with
the National Electric
Code, and local
regulations.
Only power
with a regulated
(listed) constant voltage
Class 2 power
supply (12-24V DC).
Ensure
applicable wire is installed between driver, xture, and any controls in between. When choosing wire, factor
in voltage drop,
amperage rating and
type (in-wall rated,
wet location rated,
etc.). Inadequate wire
installation could overheat
wires and cause
re.
This product
is rated for
indoor installation and
only for dry
locations.
Do not
modify this product
beyond the instructions
in this guide
or the warranty
will be voided.
Wiring
diagrams in this
installation guide for
basic installations. Please
carefully review your
installation before proceeding
 |
| iControl Electronics Co., Ltd www.icontrol.com.vn |

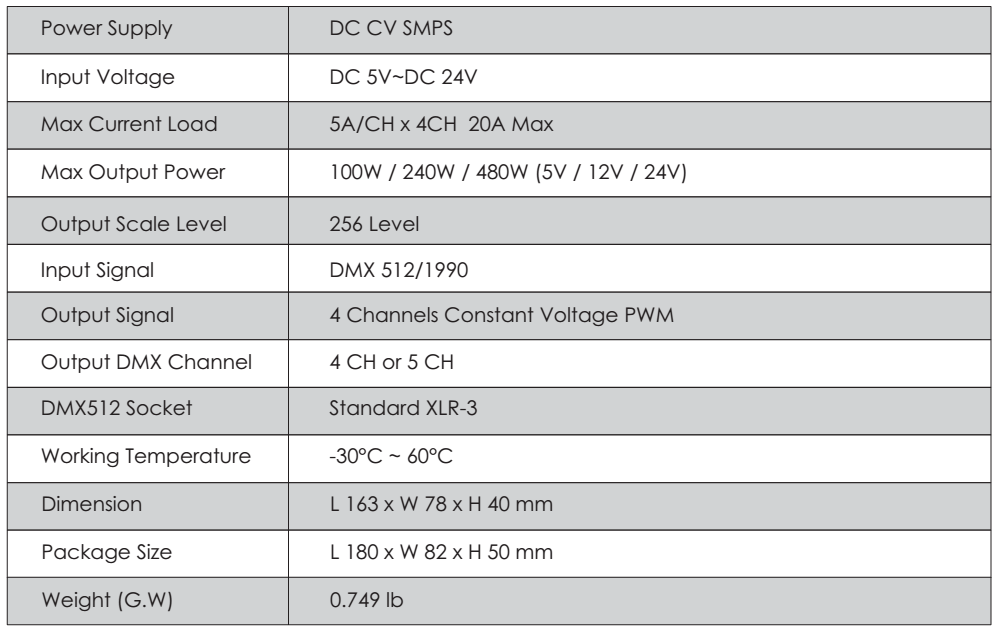

1.
Product
Parameter:
 |
| iControl Electronics Co., Ltd www.icontrol.com.vn |
2.
Product
Features:
- 4 output channels and controls RGBW led lights
- 256-level brightness control, controls 0-100% color brightness
- DC 5V~ DC 24V input voltage
- Easy addressable DMX interface with easy dip-switch settings and testing modes
- Decoder comes with manual dimming, 10 testing modes and 8 rate of change
3.
Two
versions of LT-840 decoder:
 |
| iControl Electronics Co., Ltd www.icontrol.com.vn |
3.1 Setting the DMX Address on LT-840:
- LT-840 uses Dip-switches to set addresses.
Set to address ‘001’ (will be xed to address 001 – 004)
 |
| iControl Electronics Co., Ltd www.icontrol.com.vn |
Turn ON the switch 001 for address 001
Set to address ‘005’ (will be xed to address 005 – 008)
 |
| iControl Electronics Co., Ltd www.icontrol.com.vn |
Set to address ‘009’ (will be xed to address 009 – 012)
 |
| iControl Electronics Co., Ltd www.icontrol.com.vn |
Turn ON the switch 001, 008 for address 009
Channels in LT-840 works with different colors:
Ch1 – Red, CH2 – Green, CH3 – Blue, CH4 – White or X.

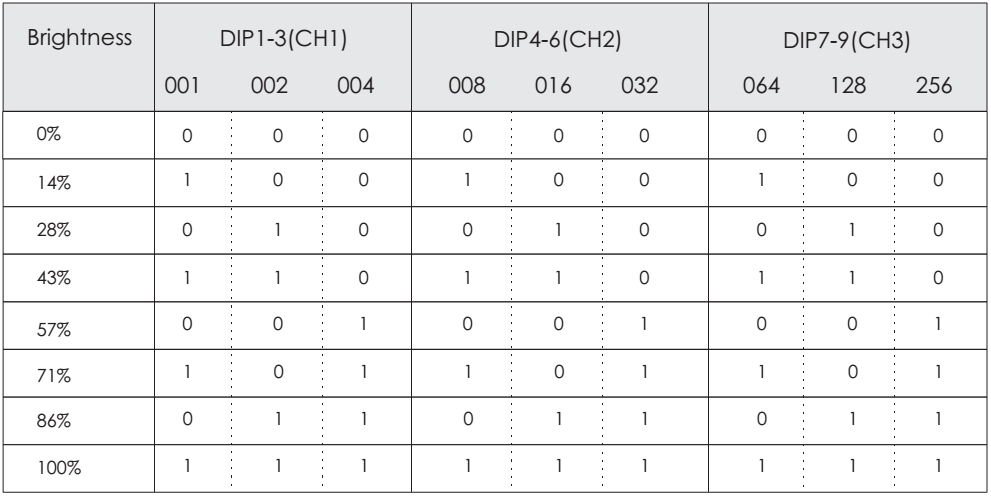

3.2 Setting the Brightness:
 |
| iControl Electronics Co., Ltd www.icontrol.com.vn |
0 = Switch OFF , 1 = Switch ON
3.3 Testing Function:
 |
| iControl Electronics Co., Ltd www.icontrol.com.vn |
0 = Switch OFF , 1 = Switch ON
For Data transmission, metalster (Metal Thin Film resistor,
90-120W 1/4W)shouid be welded at the end of each layout of
DMX data cable
(between foot 2,
foot 3, Data
+ and Data
-). Please also
refer to your
DMX console manual to
select a correct
resistor.
4. Attention:
- This product is suitable for dry location. Avoid direct sun light.
- The condition of radiation will affect the working life of controller. Please install the product in a good radiation condition.
- The output voltage of LED power supply should comply with product’s voltage range.
- This product is a high current device, please ensure to have proper wire connection to avoid parts damage and re.
- Ensure all wire connection are correct before power debugging to avoid damages
- All the switching power supply must be well grounded
- Product maintenance should be done by professionals or contact supplier for assistance
5. After-sale service:
This product comes
with 2 years ltd
warranty, lifelong technical maintenance. The warranty excludes improper
connection to power
supply damages, working
overload, manual damages
and force majeure factors.
Repair or replacement
as provided under this warranty
is exclusive remedy of the
customer. We shall not be liable for
any incidental or
consequential damages for
bench of any
stipulation in this
warranty.
For the sake
of the convenience
to repair, please
don’t tear up
or obliterate the
product label.
This manual is
only apply to
this model. Any
update is subject
to change without
prior notice.

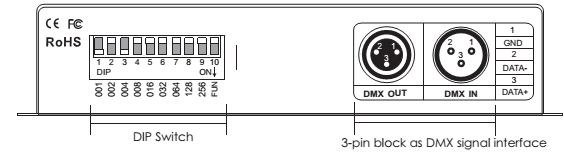

6. Interface Specications:
 |
| iControl Electronics Co., Ltd www.icontrol.com.vn |
 |
| iControl Electronics Co., Ltd www.icontrol.com.vn |
 |
| iControl Electronics Co., Ltd www.icontrol.com.vn |
7. Low Voltage Input:
Input power to the DC+ and DC- with Class 2 regulated (low
voltage) power source.
If attaching RGB
Flex Strip to
LT-840 DMX512, correct polarity
is imperative; Black
(or White) wire is positive (+) and goes
to “V+” terminal.
The common format
is to insert
the Red wire
to Ch1, Green
wire to Ch2
and
Blue wire to
Ch3. If unit
is set to
DMX Channel1, the
unit will automatically
occupy channels 1,2,3
and 4 on the master DMX
console. Ch4 is
for single color
LED Flex Strip.
If attaching a
single color, the
format is to
attach the positive
to COM and negative
to Ch1 (but can
also be Channel 2,3
or 4)
Warning: Input voltage must be identical to output voltage of
the LED Fixture!
WIRE 6-8 MM (0.25-0.30")
Exposed wire should not be more than 6- 8 mm long &
solder tip (tinned). Do not allow
Wires to cross and insure all exposed wire is fully inserted
into the screw terminals. Hand
tighten screw terminals. Use 22 to 14 AWG gauge wire for
output terminals.
Input Voltage must be identical to output voltage of the
LED
Input: For low voltage power input (12DC ~ 24VDC). V- and
V+. Use only 22 to 14 gauge
wire for input terminals.
8. LT-840 wiring Diagram:
 |
| iControl Electroncs Co., Ltd www.icontrol.com.vn |
