I. Product Summarize

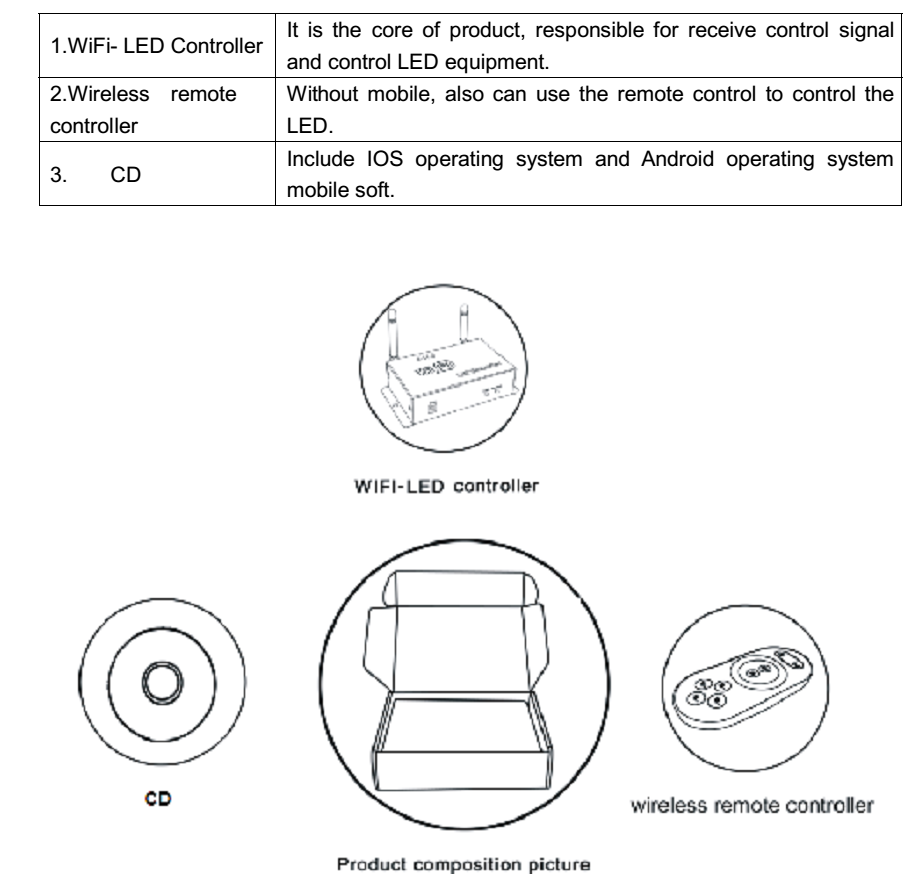

1. Product constitute:
 |
| iControl Electronics Co., Ltd www.icontrol.com.vn |
2. Product summarize

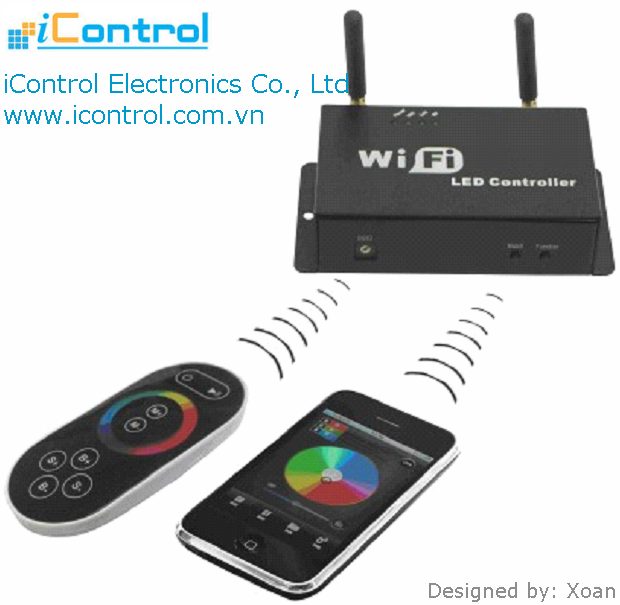

WiFi-LED controller is following the traditional with
infrared, RF technology controller foundation, it is birth of market and
customer's demand, it is one type controller which integration the newest wifi
technical in the market. It makes the LED control more convenience, more
hommization. We can use an Android system or IOS system mobile phone to install
control software, then it can control LED, this is the wishes of every
customer.
Use WiFi technology can make our control range more
wider, can get rid of narrow space constraint, in building can control more
than 50m, in outdoor can control more than 100m.
In the condition of not use the mobile software, also can
use the remote control to control, very convenience,two choices for you.
II. Technical Parameters
1. Remote control technical parameters:
1: Working temperature: -20-60℃
2: Power supply method：AAA*3
3: Supply voltage：1.5V*3
4: Standby power：0.015mW
5: Standby current：3uA
6: Working current：200uA
7: Emission current：10mA
8: Remote control distance：about 50m
9: Standby time：6 months
2. Software technical parameters:
1: Name：Magic
Color 1.0
2: Runtime platform：Android version support Android system,
IOS version support IOS system, equipment must have WiFi function.
3: Byte: Android version(622K)、IOS version(581K).
4: Language: English
5: Category: communications
6: Free, green, no plug-ins
3. Controller technical parameters:
1: Working voltage: DC5--24V
2: Output control: can flexible control 3 channel, 2
channel, 1 channel LED lamps.
3: Output current: 4A*3
4: Connect mode: common anode
5: Packing size:L215*W165*H55(mm)
6: External dimension: L107*W65*H30（mm）
7: Net weight:340g
8: Gross weight:480g
9: Receiving sensitivity: 802.11b DSSS(-5dBm)，802.11b CCK (-10dBm)，802.11g OFDM(-15dBm)
